M Series Microscopes

Innovation describes the M Series microscope. Unique base design provides comfort while viewing and stability while operating this instrument. A calibrated pointer provides actual measurements and a reverse nosepiece on the stage makes the M Series more comfortable to use and provides more working room in the stage area. Suitable for grades 11 through College and University level applications as well as a great instrument for industry and lab use. Limited lifetime warranty.
Features:

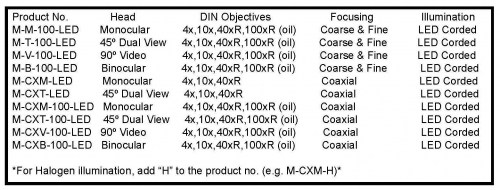

- Choice of monocular 45º inclined head, 45º dual view head, - - 90º video head or binocular head
- All heads rotate 360º for convenient viewing
- 10x wide-field eyepiece with calibrated pointer
- Quadruple reverse nosepiece
- DIN objectives are parfocaled, parcentered and color-coded
- Choice of coaxial or separate coarse and fine focusing
- Positive stops at both ends of stage travel to prevent damage to specimens and optics
- Rack and pinion 1.25 N.A. Abbe condenser with iris diaphragm
- Adjustable condenser diaphragm with Koehler illumination
- Large built-in mechanical stage 5.5" x 5.25" allows for smooth X-Y travel in 1mm graduations
- All models have light intensity control, on/off switch and power cord
- Choice of LED or halogen illumination
- Vinyl dustcover and instruction manual included
- Shipping information: 11" x 15" x 20"-16lbs
