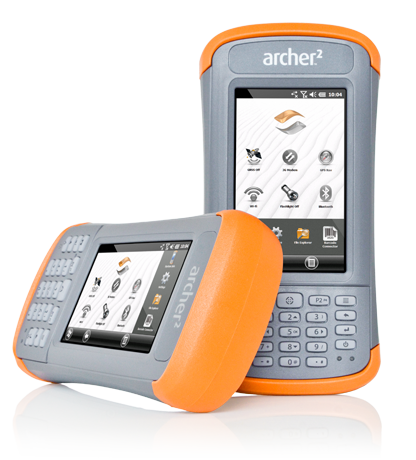

Archer2 Ultra Rugged PDA

WHEREVER YOUR JOB TAKES YOU

From the hammer and anvil, the Archer 2 has emerged faster, smarter, and more sophisticated than ever before, claiming top spot among the most advanced rugged handhelds out there. Specifically designed to boost productivity and speed, the Archer 2 was made for professionals who don’t have time to mess around. Rest assured knowing you can rely on the Archer 2 to help get the work done, wherever your job takes you.

The Archer 2 incorporates all the best things about the Archer and adds to them. Featuring a new IllumiView™ high-visibility display, the Archer 2 remains extraordinarily bright under even the most glaring sunlight. You’ll love the responsiveness of its large, glove-friendly capacitive touchscreen and numeric keypad, allowing you to input data at unprecedented speeds. And for those work days that just seem to go on and on, you can trust that the Archer 2’s custom Overtime Technology™ battery will get you through, no problem. Add to this the signature ruggedness that Juniper Systems is known for, and you have one mean data-collecting machine that you can rely on, wherever your job takes you.

Specifications:

PHYSICAL

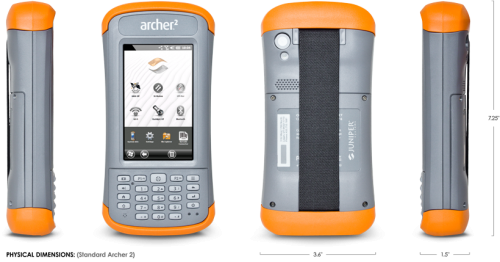

• Size, Standard models: 3.6" w x 7.25" l x 1.5" d (91 mm x 184 mm x 38 mm)
• Weight: 1.3 lbs (590 g)
• Durable hardened plastic in a shear-proof and shock-resistant design
• Strong chemical resistance
• Comfortable, wide hand strap
• Easy-to-grip, impact-absorbing bumpers, safety orange or tactical gray

POWER

• Intelligent Li-Ion battery 3.7VDC @ 10600mAh, 38.7Whr
• Operates for up to 20 hours on one charge
• Charges in 2 to 4 hours
• Battery easily changeable in field
• Optimized for excellent performance in cold temperatures

DISPLAY

• Active viewing area: 4.3" (109 mm) WVGA LCD TFT (800x480)
• High visibility backlit LCD
• Portrait or landscape orientation

TOUCHSCREEN

• Projected capacitive touch interface “optically bonded” to display for increased visibility
• Chemically-strengthened glass

KEYBOARD

• Adjustable LED backlit keys
• Five-way directional navpad
• Numeric keypad (6 user-reassignable)
• OEM configurable/customizable

JUNIPER RUGGED™

• IP68 waterproof and dustproof
• Operating temperature: -22F to 140F (-30C to 60C), Note: Bluetooth® wireless technology is rated to –4F (–20C)
• Storage temperature: -22F to 158F (–30C to 70C)

• Shockproof: multiple drops from 5' (1.5 m) onto concrete
• MIL-STD-810G test procedures: Method 500.5 Low Pressure (Altitude); Method 501.5 High Temperature; Method 502.5 Low Temperature; Method 503.5 Temperature Shock; Method 506.5 Rain; Method 507.5 Humidity; Method 510.5 Sand and Dust; Method 512.5 Immersion; Method 514.6 Vibration; Method 516.6 Shock
• Optional Class I, II, & III, Div 2 non-incendive ratingfor use in hazardous locations

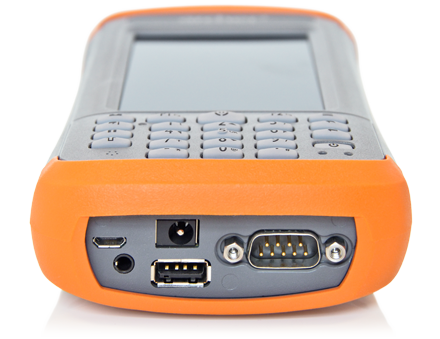

PORTS

• COM1, RS-232C 9-pin D connector with 5VDC power output
• USB host (Full A), USB client (Micro B)
• 12, 24VDC input, 10-36V unregulated
• 3.5 mm audio jack, supports speaker/ microphone or stereo output (pin detect)
• I/O module OEM configurable/customizable

PROCESSOR

• 1.0GHz ARM Cortex A8 i.MX53 processor

OPERATING SYSTEM AND SOFTWARE

• Microsoft® Windows Embedded Handheld 6.5.3
• Microsoft Office Mobile 2010* (Word Mobile, Excel Mobile, PowerPoint Mobile, Outlook Mobile)
• Multiple languages (English, French, Spanish, German, Portuguese)

MEMORY AND DATA STORAGE

• 512MB RAM
• 8GB flash storage
• User-accessible micro SD/SDHC slot

WIRELESS CONNECTIVITY OPTIONS

• Bluetooth® wireless technology, 2.1 +EDR, Class 1.5
• Wi-Fi® 802.11b/g/n with extended range
• 3.75G modem - Pentaband Worldwide (Geo 3G model only)
• Frequencies: HSPA+/UMTS: 800/850/900/1800/1900/2100 MHz
• Data communication interface

CAMERA (GEO MODELS)

• 5MP resolution with autofocus and LED Illuminator + video capture
• Juniper Geotagging™: embed and emboss photo with date, time, and GPS position

GPS/GNSS (GEO MODELS):

• High-sensitivity GPS/GLONASS/SBAS receiver
• User settings for enhanced performance under canopy
• Accuracy: SBAS 2 meters; autonomous: 5 meters
• Post-processed accuracy: sub-meter
• NMEA and BINR output
• 32 channel all-in-view

ARCHER 2 MODELS

Standard Model:

• Wi-Fi® & Bluetooth® wireless technology

Geo Model:

• Wi-Fi® & Bluetooth® wireless technology
• GPS
• 5MP camera

Geo Cell Model:

• Wi-Fi® & Bluetooth® wireless technology
• GPS
• 5MP camera
• 3.75G GSM modem

Geo BC Model:

• Wi-Fi® & Bluetooth® wireless technology
• GPS
• 5MP camera
• Barcode scanner

Geo Cell BC Model:

• Wi-Fi® & Bluetooth® wireless technology
• GPS
• 5MP camera
• Barcode scanner
• 3.75G GSM modem

Hazloc Model:

• Class I, II, & III, Division 2 certification

CERTIFICATIONS AND STANDARDS

All models of the Archer 2 must be certified and approved to be sold into individual countries.

• FCC Class B
• CE Marking (applicable EMC, R&TTE, and LVD directives)
• Industry Canada
• EN60950 Safety
• Optional Class I, II, & III, Division 2 for hazardous locations

STANDARD ACCESSORIES INCLUDED WITH THE ARCHER 2

• 10600mAh Battery
• AC Wall Charger with International Plug Kit
• Micro USB Client Sync Cable
• Quick Start Guide
• Ultra-wide Hand Strap
• Shipping Box with Sleeve
• Screwdriver
• Capacitive Stylus with Tether
• 2-Year Warranty

OPTIONAL ACCESSORIES

• 8GB Micro SDHC Industrial Grade
• Capacitive Stylus with Tether Kit
• Holster Case
• Flip Cover Fitted Case

Because of the wide variety of Models, Options and Accessories it is best to call 1-800-561-3600 or email info@bapequipment.com for detaied specific information and pricing on the Archer2
