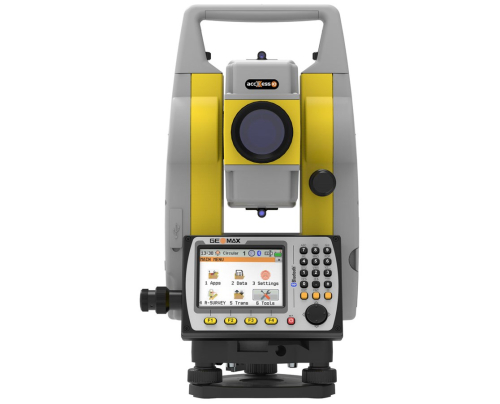

GeoMax Zoom50 Reflectorless Total Station

SKU: Zoom50
Price:
Price varies based on options.

Model:
Qty: - +
   - OR -

The Geomax Zoom50 Series Reflectorless Total Station features high performance accXess EDM technology and a smart distance measurement engine that is tailored for outstanding range, speed, and precision. With a reflectorless range of up to 3,280 feet, the Zoom 50 has a typical measurement time of one second and is equipped with quadruple-axis compensation. This Geomax Total Station has an outstanding range of up to 11,483 feet using a single prism.

This Geomax Manual Total Station has a built-in laser plummet with adjustable brightness. It also has Bluetooth Class 1 for easy connectivity with data collectors, a RS232 communication port, and a USB port for data sharing and transfer. The Zoom50 has a high capacity internal memory capable of recording data up to 50,000 points. In addition, it boasts an extra-wide 3.5-inch colored touchscreen with a full alphanumeric keyboard.

The Zoom50 Total Station is equipped with Windows Embedded CE OS and Geomax Pro onboard field software that allows Surveyors and Construction professionals to work with versatile and enhanced applications. This Total Station also includes a removable Li-ion internal battery that powers the device up to 36 hours. The Geomax Zoom 50 is dustproof and water-resistant and comes with PowerLock theft protection.

Models

The Geomax Zoom50 Series Reflectorless Total Station is available in six models with different accuracies and reflectorless range.

  • 6012497: Geomax Zoom50 1-Second Total Station with 1,640-Foot Reflectorless Range
  • 6012500: Geomax Zoom50 1-Second Total Station with 3,280-Foot Reflectorless Range
  • 6012498: Geomax Zoom50 2-Second Total Station with 1,640-Foot Reflectorless Range
  • 6012501: Geomax Zoom50 2-Second Total Station with 3,280-Foot Reflectorless Range
  • 6012499: Geomax Zoom50 5-Second Total Station with 1,640-Foot Reflectorless Range
  • 6012502: Geomax Zoom50 5-Second Total Station with 3,280-Foot Reflectorless Range

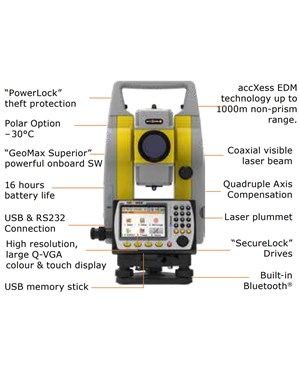

Features:

  • Choice of reflectorless range & accuracy
  • Reflectorless range up to 3,280 feet
  • Range up to 11,483 feet with a single prism
  • Typical measurement time: 1 second
  • Superior accXess EDM technology
  • Smart distance measurement engine
  • Quadruple-axis compensation
  • Laser plummet with adjustable brightness
  • Bluetooth Class 1 connectivity
  • Windows Embedded CE operating system
  • Geomax Pro Onboard Field Software
  • Internal memory of 50,000 points
  • Extra-wide 3.5” colored touchscreen
  • Full alphanumeric keyboard
  • Removable Li-ion internal battery
  • Up to 36 hours battery life
  • PowerLock theft protection
  • IP55 dustproof and water resistant

Specifications:

General
Weight 11.2 lbs (5.1 kg)
Dimensions 12.4" L x 6.82" W x 8.9" H
Warranty 1-year
Protection Class IP55 dustproof and low-pressure water jet resistant
Tripod Thread N/A
Auto Shut Off N/A
Internal Memory 50,000 points
Software Geomax Pro Onboard Field Software
Tribrach Yes
Auto-Tracking Speed N/A
Guide Light N/A

Angle Measurement
Measuring Method/Reading System Absolute, continuous, diametrical
Detection Method N/A
Minimum Reading N/A
Accuracy 1 second, 2 second, 5 second
Diameter of Circle N/A
Display Method 0.1” / 0.1 mgon

Distance Measurement
Unit of Measure (distance display) m/ft
EDM Accuracy (Precision) ±2mm + 2ppm
Minimum Reading Up to 1,640 ft. (500 m); 3,280 ft. (1,000 m)

Tilt Sensor/Compensator
Range N/A
Type Quadruple-axis compensation
Method N/A
Setting Accuracy N/A

Battery/Power
Power Source Removable Li-ion
Battery Life Up to 36 hours (continuous angle); Up to 16 hours (continous distance measurement every 30s)
Battery Life Alert N/A
Voltage N/A

Optical Plummet
Image N/A
Magnification N/A
Field of View N/A
Focus Range N/A

Level
Plate/Tubular Bubble Vial N/A
Circular Bubble Vial N/A
Electronic Level N/A

Telescope
Length of Tube N/A
Image N/A
Diameter of Objective Lens (Aperture) N/A
Magnification N/A
Field of View N/A
Resolving Power N/A
Minimum Focus Distance N/A
Ratio of Stadia Lines N/A
Sight Distance Precision/Focus Range N/A
Reticle Illumination N/A
Reflectorless N/A
Quick Sights (Rough Sights) N/A

Display and Keypad
Type Q-VGA color & touch display
Sides Single
Keys Full alphanumeric
Touchscreen Yes
Backlight Yes
Pixels 320 x 240

Temperature
Operating -22 to 122 °F (-30 to 50 °C)
Storage N/A

Applications
Surveying and Construction Yes
Mapping and GIS (geographic information systems) Yes
Utilities Yes
Environment Studies Yes
Geomarking Yes
Archaeology Yes
Accident Reconstruction Yes

Measurement Range (under fair weather conditions)
Single Prism Up to 11,482.94 ft. (3,500 m)
Triple Prism N/A
No Prism Up to 1,640 ft. (500 m) or 3,280 ft. (1,000 m)
Mini Prism N/A
Reflective Tape N/A
Reflector Sheet N/A
Cat Eye/Flat Prism N/A
360 Degree Prism N/A

Functions
Coordinate Measurement Point Yes
Angle and Distance Stake Out Yes
Stake Out Line Yes
Offsets Yes
Missing Line Yes
Remote Elevation Yes
Resection Yes
Area Calculation Yes
Real-Time Video Imaging No

Measurement Time
Fine 1 sec
Rapid 1 sec
Tracking 1 sec

Laser Plummet
Accuracy 1.5 mm at 1.5 m instrument height
Class Class 2
Wavelength N/A

Laser Pointer
Class N/A
Accuracy N/A
Laser Range N/A

Interface
Bluetooth Class 1
USB Yes
Pin Port RS-232
Operating System Windows Embedded CE

RC-PR5 Remote Control System
Operating Range N/A
Measuring Time N/A

Auto-pointing
One AP Prism N/A
Reflective Sheet N/A
360 Degree Prism N/A
Mini Prism N/A

Includes:

  • Geomax Zoom50 Series Reflectorless Total Station
  • Hard carrying case
  • Pouch with tools
  • Protective cover
  • ZTR101 standard tribrach without optical plummet
  • Plumb bob
  • USB memory stick
  • ZBA400 Li-ion rechargeable battery
  • ZCH201 charger for ZBA201 and ZBA400 Li-ion battery
  • Multilingual quick guide
  • User manual
  • 1-year manufacturer's warranty
