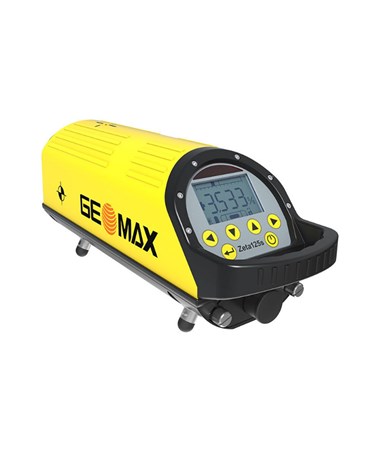

Geomax Zeta125 Pipe Laser

SKU: Geomax Zeta125
Price:
Price varies based on options.

Model:
Qty: - +
   - OR -

The GeoMax Zeta125 Series Pipe Laser provides ±10 arc second accuracy which boasts great functionality and versatile configuration, ideal for control and implementation of gradients and drainage systems. It offers maximum productivity with its fast self-leveling laser that can reach up to 900 feet and inclination of -15% to +45%.

This pipe laser is built with an easy to read LCD display which is perfectly backlit, functional even in dark condition. It fits in tight bends and narrow manholes and its slim build make it suitable for pipes with around five inches diameter. With an alignment function, surveyors can control the laser in the direction of the target up to 600 feet away using the included remote control.

With an IP68 rating, the Zeta125 series is made with extremely robust construction, perfect in rough environments. It also has an optional feature for vertical plane rotation, auto-target system, and cross-axis compensation to accommodate all work preference. Using a Li-Ion battery pack, this pipe laser lasts up to 40 hours and is adaptable with 5/8-11 tripod threading.

Configuration Options

The GeoMax Zeta125 Series Pipe Laser comes in two models in different packages, all backed by a 1-year warranty.

Features:

  • Choice of 6 packages
  • Range up to 900 feet
  • ±10 arc second accuracy
  • Self-leveling ranging from -15% to +45%
  • Grade range -10% to +40%
  • Includes long-range IR remote control
  • Fits in 5-inch diameter pipes
  • Large LCD display with backlight
  • Li-Ion battery pack with charger
  • 5/8-11 tripod thread
  • 1-year manufacturer's warrant

Specifications:

General
Accuracy ±1/16 inch at 100 feet (± 1.5 mm/30 m), 10 arc seconds
Self-Leveling Range -15% to +45%
Protection Class IP68 dustproof and water immersible beyond 1m
Weight 4.5 lbs (2.07 kg)
Dimensions 12" L x 4.1" W x 4.4" H
Mount N/A
Warranty 5-year
Operating Temperature -4 to 122 °F (-20 to 50 °C)
Tripod Thread 5/8 x 11
Material N/A
Diameter 5 inches (12.7 cm)
Cross Axis Leveling 6 degrees

Laser
Color Red
Type/Wavelength Class 3R

Grade/Slope
Entry Digit select
Display Percent
Azimuth Range Up to 20 feet at 100 feet (6 m to 30 m)
Range +40% to -10%

Battery/Power
Rechargeable Battery/Life Up to 40 hours
Alkaline Battery/Life N/A
Power Cord 12-volt

Remote Control
Display N/A
Operating Range Up to 600 feet front through the pipe; Up to 25 feet from rear
Alkaline Battery/Life N/A

Features
Display LCD display
Plumb Reference N/A
Auto Targeting Yes
Grade Zeroing N/A
Grade Lock N/A
Line Lock N/A
Sleep Mode/Auto Shut Off N/A
Security N/A
Rotating Laser Yes

Applications
Tunneling Yes
Sanitation N/A
Interior Pipe Work Yes
Exterior Pipe Work Yes
Manholes Yes

Rotating Laser
Range N/A
Angle N/A
Speed N/A
Length N/A

Included:

  • GeoMax Zeta125 Series Pipe Laser
  • Remote Control
  • Leg Set, 150mm
  • Carrying Case
  • Li-ion Battery
  • International Charger
  • User Manual
  • 5-Year Manufacturer's Warranty
