"DJI AGRAS T50"

DJI AGRAS T50

Description

DJI AGRAS T50 elevates drone agricultural operations to new heights. It inherits a powerful coaxial twin-rotor propulsion system and a split-type torque resistant structure for next level stability when carrying 40 kg spraying or 50 kg spreading payloads.

DJI AGRAS T50 leverages a Dual Atomizing Spraying System, Front and Rear Phased Array Radars, and a Binocular Vision System. DJI AGRAS T50 excels across multiple scenarios, from surveying to spraying and spreading, guaranteeing stable operations and steady performance

Spraying System

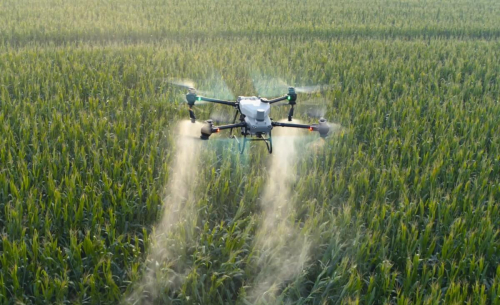

High Rate, Atomized Spraying

DJI AGRAS T50’s Dual Atomizing Spraying System provides an ultra-large flow rate of up to 16 L/min (2-sprinkler spraying). It produces uniform and fine spray droplets, and does not leak. DJI AGRAS T50 can be equipped with an additional pair of centrifugal sprinklers, increasing flow rate to 24 L/min (4-sprinkler spraying) for operations that require high application volume.

Magnetic Drive Impeller Pump

Dual pump flow rate of up to 24 L/min. This is a 100% increase compared with the previous generation, to meet demands of fields, orchards, and high-temperature environments.

Dual Atomizing Centrifugal Sprinklers

Droplet size can be adjusted between 50-500 μm, depending on the chemicals used

Brand-New Solenoid Valves

Precision starting and stopping eliminates leaking

Spreading system

AGRAS T50 Spreading System

DJI AGRAS T50’s new spreader and spiral channel spinning disk significantly improve spreading efficiency and smoothness. 1,500 kg per hour

50 kg Payload

75 L max capacity and an expanded loading gate for quick refills

Smooth Spreading

The torque of the spreader is doubled and the discharge hatch is enlarged to enable a flow rate up to 108 kg/min.

Uniform Spreading

DJI AGRAS T50’s spiral channel spinning disk makes spreading more uniform

Low Rate Spreading

You can also switch to small hopper gates to improve spreading accuracy with a low flow rate.

Real-Time Weighing

DJI AGRAS T50 is equipped with a weighing sensor which allows you to monitor the remaining payload in real time.

Fast Disassembly and Cleaning

The spreader can be quickly disassembled and cleaned for easy maintenance.

Tested for reliability, durability, and safety

Spraying and spreading operations are frequent, intense, and take place in complex environments. DJI AGRAS T50 has passed hundreds of reliability tests and its main body is durable to help ensure safe operation

Double your peace of mind with Binocular Vision and Dual Radar

The DJI AGRAS T50 features advanced front and rear Active Phased Array Radars with double the RF channels for precise detection and multidirectional obstacle sensing. Paired with dual Binocular Vision sensors, it ensures detailed terrain awareness, automatic obstacle bypassing, and seamless Terrain Following, even on steep slopes.

One drone for surveying, spraying, and spreading

DJI AGRAS T50 integrates aerial surveying, spraying, and spreading into a single drone. A high-resolution FPV gimbal camera enables real-time capture of field and orchard images. Paired with DJI RC Plus and RTK service, you can generate high definition maps which underpin subsequent automatic flight routes. DJI AGRAS T50 can take off and perform automatic operations, all at the push of a button

Orchard Aerial Survey

DJI AGRAS T50 supports obstacle bypassing and Terrain Following for surveying of orchards on slopes up to 20°. With DJI RC Plus and its real-time mapping capabilities, it can automatically identify fruit trees and obstacles. Based on the distribution of the fruit trees, it can generate accurate and fully automatic 3D flight routes

5 hectare orchard mapped in 10 minutes

Orchard 3D Map

Field Aerial Survey

Survey the entire field, automatically identify field boundaries and obstacles, and plan more precise flight routes.

High Brightness Widescreen Remote Controller

DJI RC Plus has a 7-inch high brightness screen and an 8-core processor for smooth operations. Intelligent route planning minimizes distances flown with a full tank, greatly increasing operation efficiency. Manual mode allows you to control operations at will.

Signal Stability

The new and upgraded quad-antenna O3 Transmission system works offline even in areas without cellular coverage, offering a transmission range of 2 km [13]. Its anti-interference ability helps ensure high signal quality during operations over tall crops.

Click Here to Watch Video

Specs

Aircraft

Propulsion System- Motors

Porulsion

Spray Tank

Sprinklers

Delivery Pumps

T50 Sreading Sysem

Phase Array Radar System

Binocular Vision System

Remote Controller

DB1560 Intelligent Flight Battery

C10000 Inteligent Power Supply

Relay
